Multi Core Custom Color Length Right Angle Male M12 Cable
Assemblies For Sensor
• Protect from dust and water during immersion, resistant to many
oils and chemicals.
• Easily connected to proximity switch, flow monitoring devices and
field bus components sensor devices and actuator devices.
• Ip67 Ip68 dc connector for led light meets all the requirements
of sensor devices and actuator devices for automation
application.
• 100% new material, high-quality parts, strictly QC standard
according to international customers.
customized Characteristics of M12 Series
| General Characteristics |
| Number of contact | 3 | 4 | 5 | 8 | 12 | 17 |
| Locking system | screw M12*1.0 |
| Termination | solder, moulded on cable, crimp or screw clamp |
| Wire guage in mm² | 0.14/0.25/0.34/0.5 etc |
| Wire guage in AWG | 26/24/22/20 etc |
| Shell protection | IP67/IP68 |
| Mechanical operation | >500 mating cycles |
| Upper temperature | +85℃ |
| Lower temperature | -25℃ |
| Electrical Characteristics |
| Rated voltage | 250V | 60V | 30V |
| Pollution degree | III |
| Test voltage | 500V±15V |
| Rated current(40℃) | 4A | 1.5A |
| Contact resistance | ≤10mΩ |
| insulation resistance | ≥100MΩ |
| Materials |
| Pin contact | CuZn |
| Socket contact | CuSn |
| Contact plating | Au |
| Upper temperature | PA66(UL 94V-0) |
| Female insent | PA66(UL 94V-0) |
| Material of cable jacket | PVC or PUR |
| Screw | CuZn |
| Nut | CuZn |
Product Name | M5, M6.M8.M12.M14.M15.M16.M18.M19, M21 Waterproof Cable Assemblies |
Connector type | M5.M6.M8.M12.M14.M15.M16.M18 etcWaterproof Connector |
Jacket Color | White, black or customized |
We can produce series of wire harnesses:
| 1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly |
| 2.Electrical cable and wire harness |
| 3.Audio,Video,Radio cable and iso wire harness |
| 4.Industrial wire cable harness |
| 5.Home appliance wire harness |
| 6.Fuse wire ,game machine wire harness |
| 7.Power,LVDs,Flat RCA,USB cable harness |
| 8.Control and panel wiring cable assemblies |
| 9.Medical equipment cable and harness |
| 10.Airplane models wire harness |
Product family tree and application ranges
We have full series product for your choice, below picture will
help you a lot to understand this.
M5: 3pin 4pin;
M8: 3pin 4pin 6pin 8pin ;
M12: 2pin 3pin 4pin 5pin 6pin 7pin
8pin 9pin 10pin 11pin 12pin 13pin 14pin
15pin 16pin 17pin,

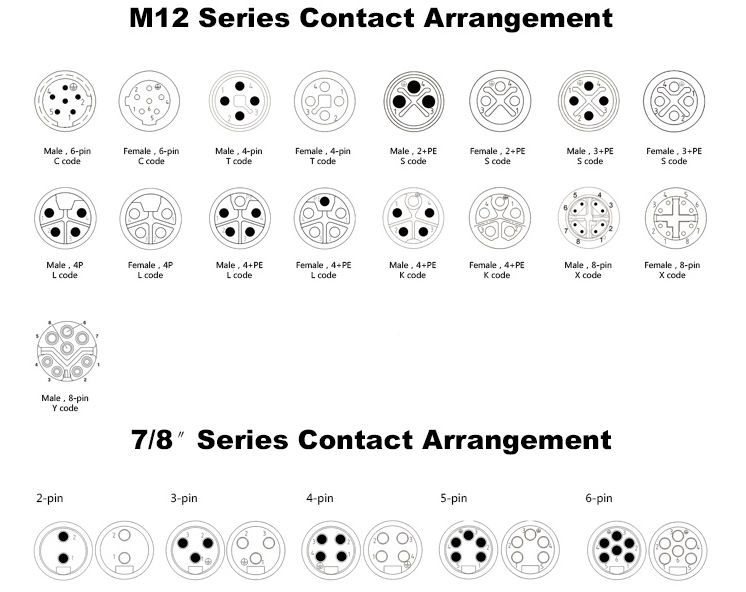

M12 code:A code B code C code D code
S code T code l code K code X code Y
code M code.
